Wireless DTU RS485 cable replacement Data Converter

  • Wireless DTU RS485 cable replacement Data Converter
  • Wireless DTU RS485 cable replacement Data Converter
Model No.︰LS-R324
Brand Name︰Lensen
Country of Origin︰China
Unit Price︰US $ 70 / pc
Minimum Order︰2 pc
Share on:

 Total 14 Related Items
12345Next

Product Description

Introduction:

LS-R324 is a 1W radio modem, transmit 3km LOS. It supports UHF band, 24V power supply. Usually works as DTU to connect with PLC and other industrial control devices. LS-R324 Supports RS485 Modbus RTU protocol. Has the advantage of register data restore function.



Application:

Water/waste water treatment field

Wind speed, rainfall, humidity etc data collection

Temperature, humidity, concentrations of CO2 etc data collection

Wireless data collection and transmission

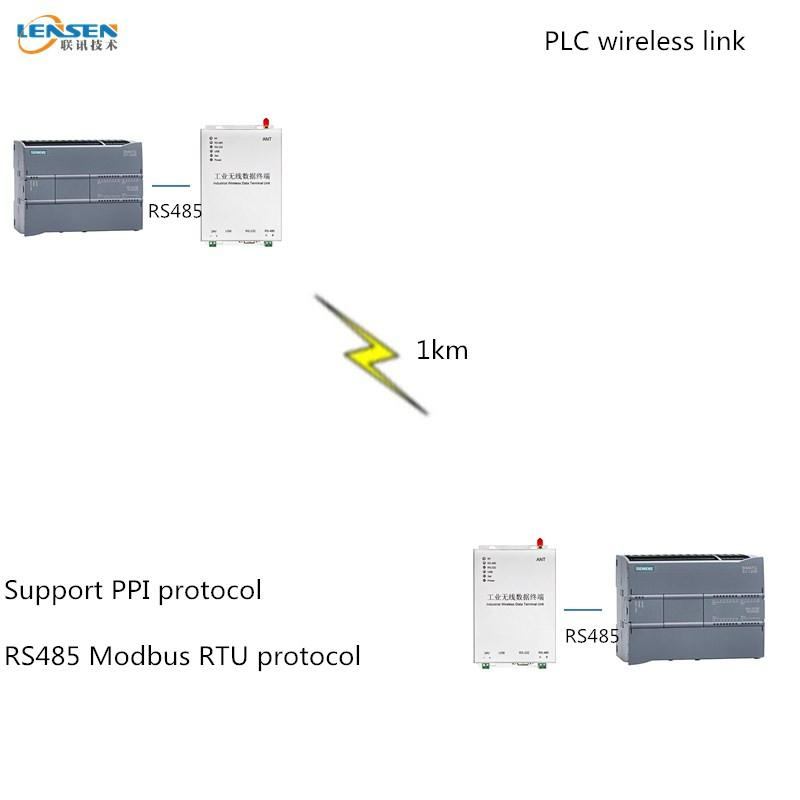

Wireless communication between PLC and sensors



Parameter:

Power output: 24V DC

RF power: 1W

Air baud rate: 1,200/2,400/4,800/9,600/19,200bps choose one

Interface baud rate: 1,200/2,400/4,800/9,600/19,200bps programmable

Frequency band: 433, 450, 470 or others

Interface: RS-232, RS-485 and USB

Communication mode: Half-duplex

Channel: 8(default), 16/32(customized)

Receive current: <45mA

Receive sensitivity: -123dBm @ 1,200bps); -118dBm @ 9,600bps)

Transmitting current: <500mA

RF line-of-sight range: 2km (BER=10-5@9600bps); 3km (BER=10-5 @ 1,200bps)

Size: 175*115*32mm (without antenna port)



Pin Definition:

  Support RS232, RS485, USB, you can use DIP switch to program

Payment Terms︰TT
