Product Description

Introduction

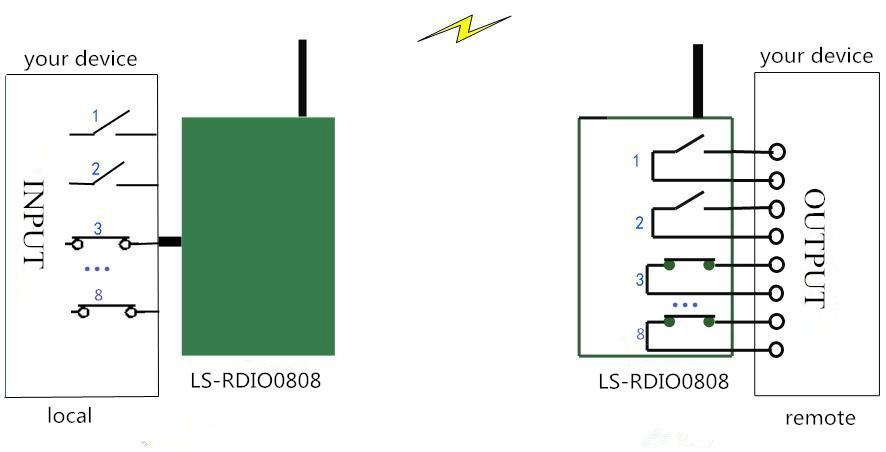

LS-RDIO0808 Modbus RTU is a 1W I/O module, 8 isolated digital inputs, 8 isolated relay outputs, 1 RS485 (wireless RS485 customizes). Wireless control 2km-3km. Use for pump control, water level monitoring, and motor, valve, light ON-OFF wireless control.



• Transparent I/O System, no programming required
• Not need internet, no third party cell, no monthly fees
• You have full control over your own carrier
• Real time status feedback from the remote site
• Fast installation and easy setup

Parameter:

• Input: 8 isolated digital active inputs (passive input customize)
• Output: 8 isolated relay passive contact outputs, contact load 5A@220V AC, 5A@30V DC.(active output customize)
• Protocol: Modbus RTU
• Collocated with a wireless data module whose transmitting distance is about 2km-3km; the working frequency 433MHz (400-470MHz); RF power: 1W; Receiving sensitivity: -123dBm
• Receiving current: <50mA; transmitting current: 600mA
• Power supply: DC 9V-36V
• Dimension: 145mm*90mm*40mm



• Application:
• Lighting Control Systems
• Wireless Pump Control 
• Wireless Valve Actuation 
• Conveyor Control
• Grain Augers
• Engine Control
• Tank Level Monitoring

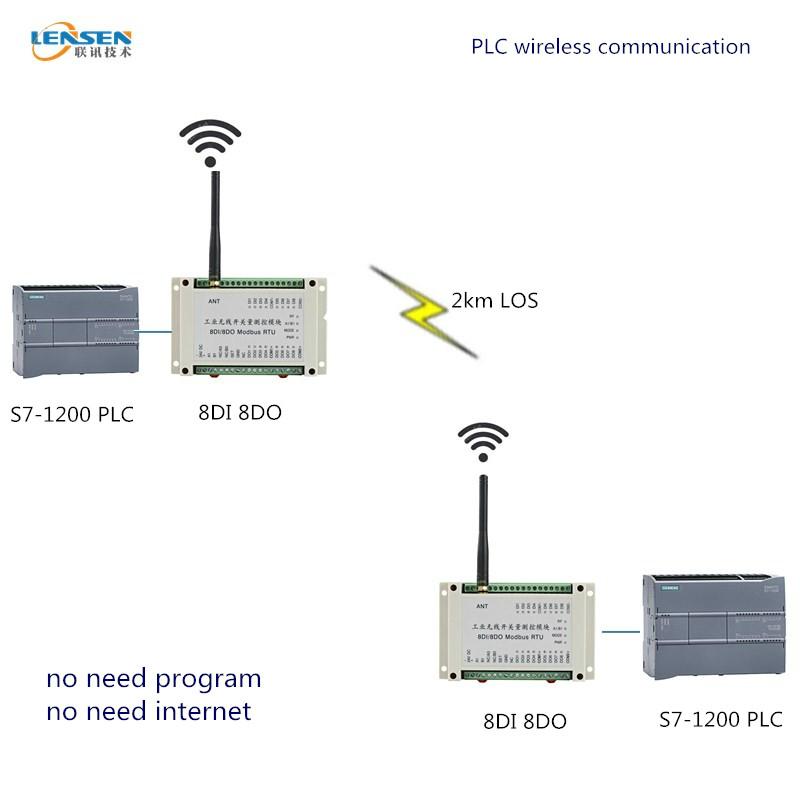

• PLC Activation
• SCADA





Payment Terms︰ T/T

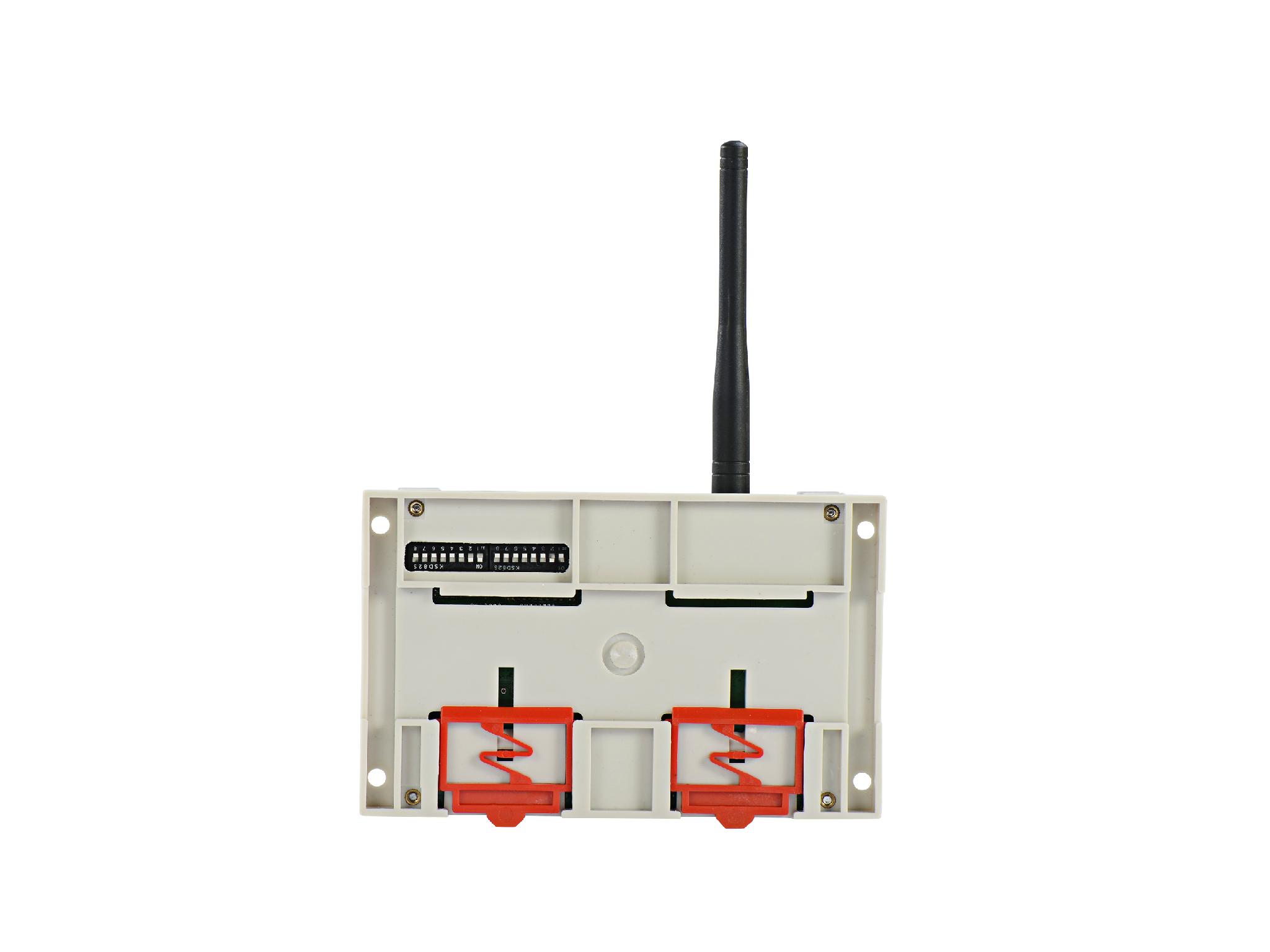

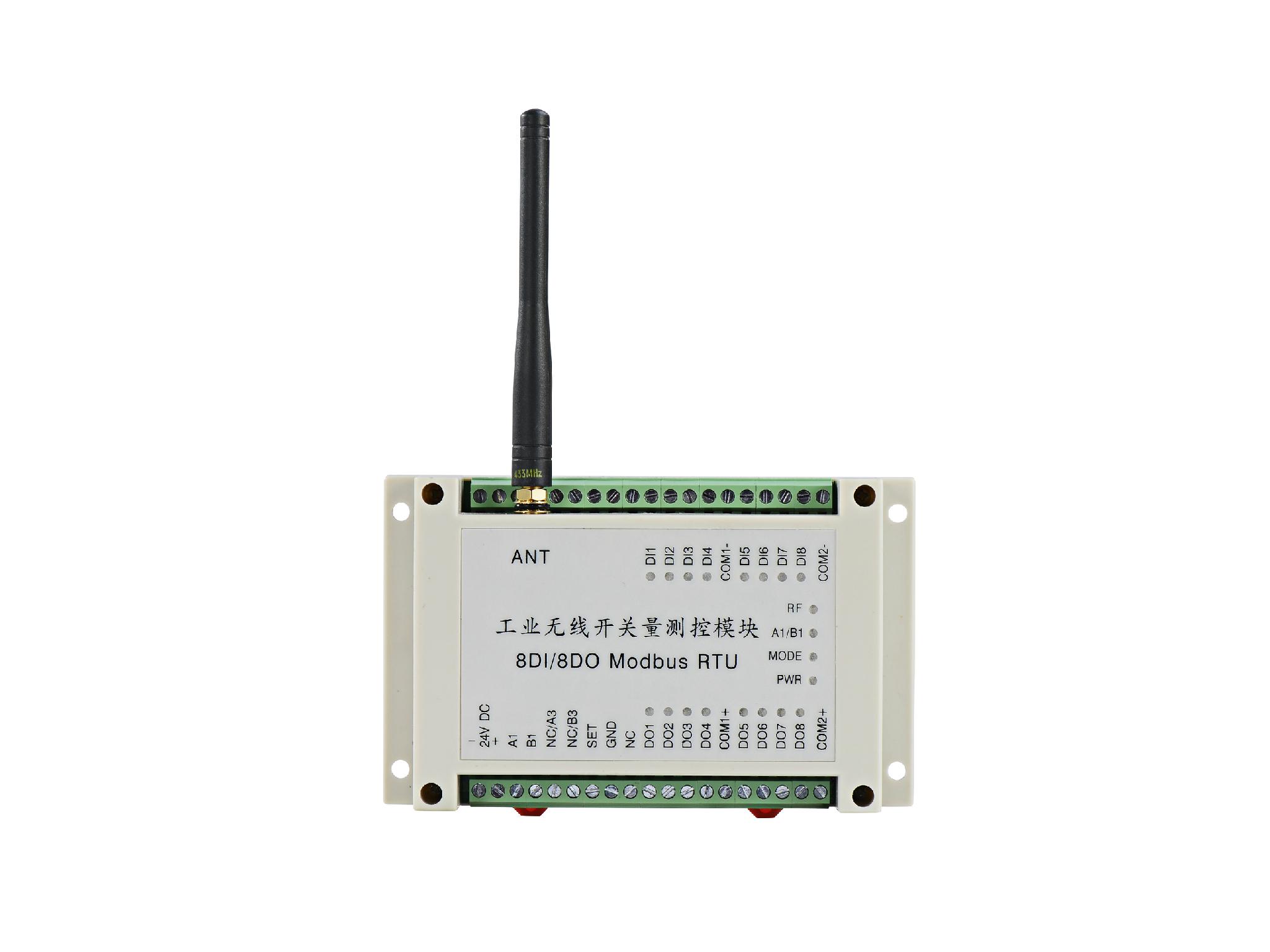

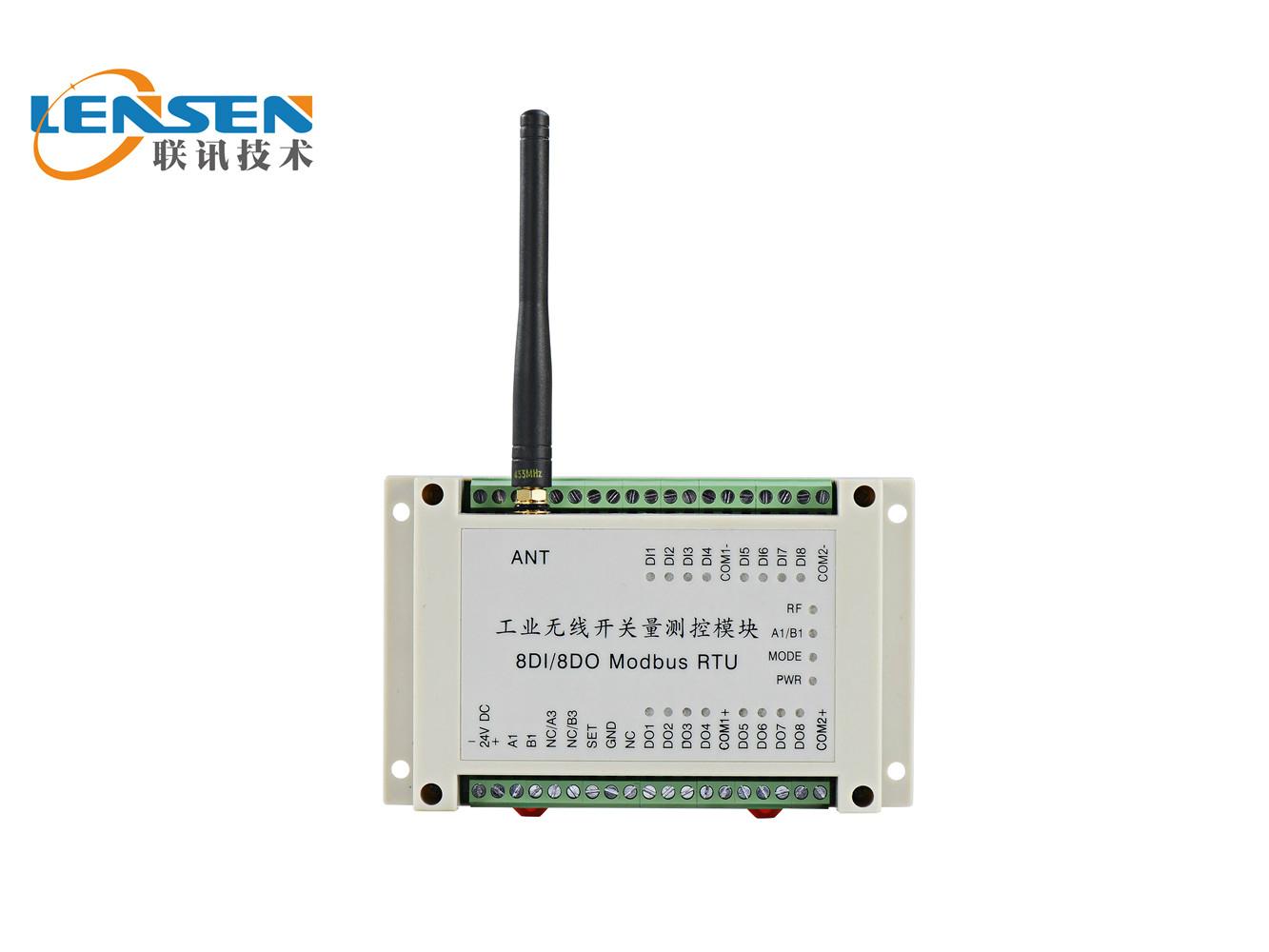

Product Image
